Motherboard Zebronics H61
With NVMe Slot
LGA T1155 SOCKET

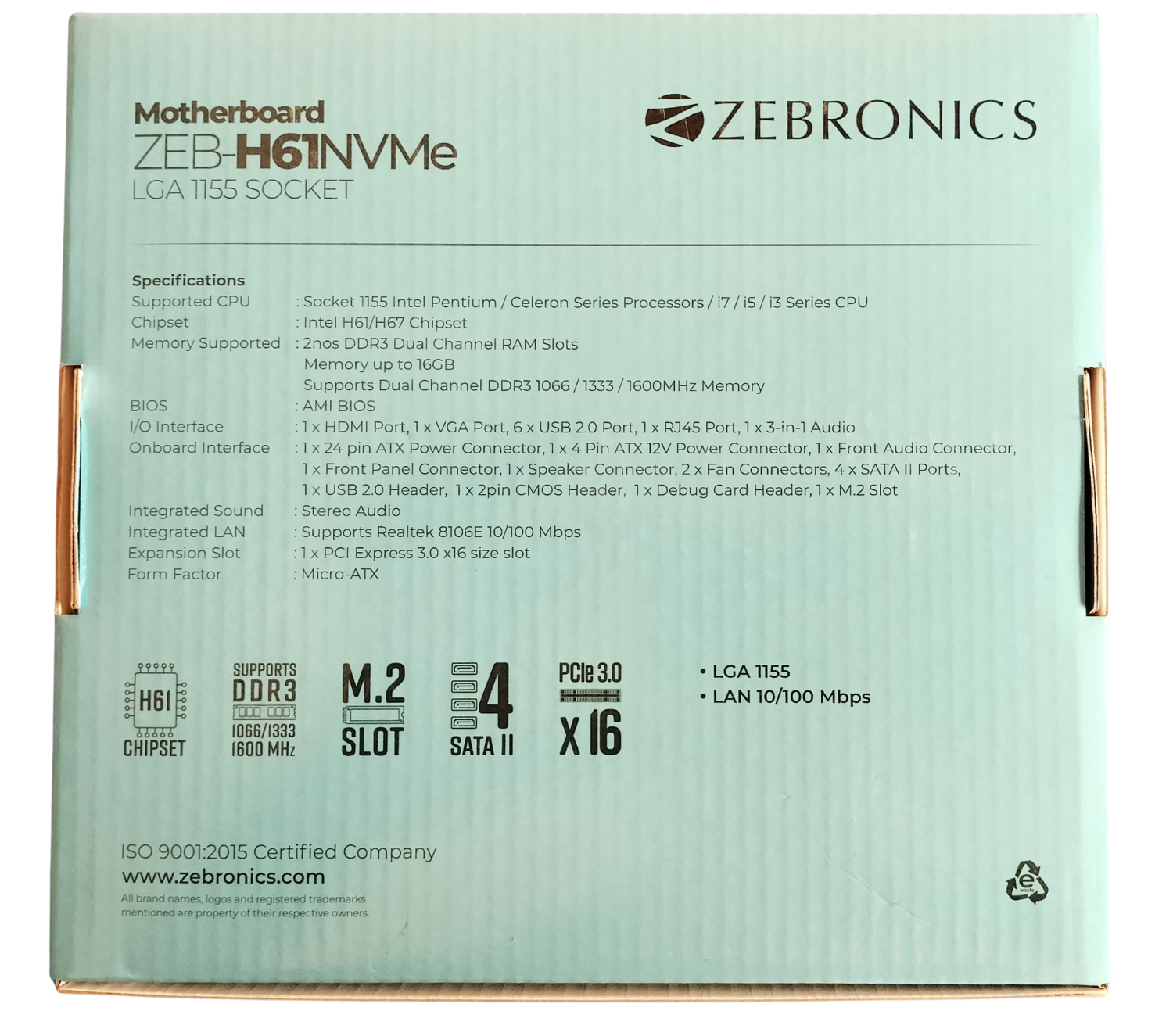

Specifications
Supported CPU : Socket 1155 Intel Pentium / Celeron Series Processors / i7 /i5 / i3 Series CPU
Chipset : Intel H61/HB67 Chipset
Memory Supported :2nos DDR3 Dual Channel RAM Slots
Memory up to 16GB
Supports Dual Channel DDR3 1066 / 1333 / 1600MHz Memory
BIOS : AMI BIOS

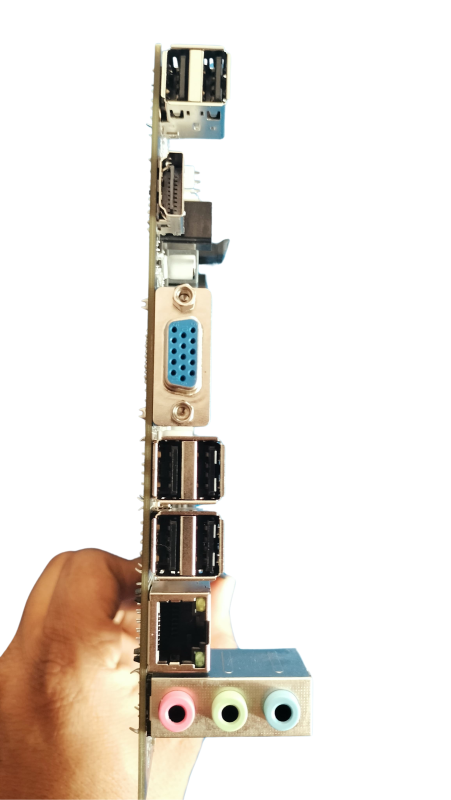

I/O Interface :1x HDMI Port, 1 x VGA Port, 6 x USB 2.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio
Onboard Interface :1x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 1 x Front Audio Connector,
1x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors, 4 x SATA || Ports,
1x USB 2.0 Header, 1x 2pin CMOS Header, 1x Debug Card Header, 1x M.2 Slot
Integrated Sound : Stereo Audio
Integrated LAN : Supports Realtek 8106E 10/100 Mbps
Expansion Slot :1x PCI Express 3.0 x16 size slot
Form Factor : Micro-ATX
PCIe 3.0 * LGA TI55
— » LAN 10/100 Mbps
(600 MH: SATA |! X 16
